Galvanized Steel Self Adhesive Insulation Pins Used To Secure Rockwool Insulation
Product Description Of The Self Adhesive Insulation Pins:
Self adhesive insulation pins with self locking washers are widely used to secure rockwool
insulation material or other insulation materials.
| Popular sizes of the self adhesive insulation pins |
| material | base size | pin diameter | pin length | fixed parts |
pin material: anneaded steel wire anneaded stainless steel wire aluminum wire base material: hardness steel stainless steel | base size: 50x50mm base thickness: 0.4mm adhesive thickness: 1mm base type: double adhesive liner: siliconized paper | 2.7mm | 38mm | self locking washer or doom cap washer |
| 2.7mm | 45mm |
| 2.7mm | 55mm |
| 2.7mm | 62mm |
| 2.7mm | 90mm |
| 2.7mm,3.0mm | 114mm |
| 2.7mm,3.0mm | 120mm |
| 2.7mm,3.0mm | 140mm |
| 2.7mm,3.0mm | 160mm |
| 2.7mm,3.0mm | 180mm |
| 2.7mm,3.0mm | 203mm |
| 2.7mm,3.0mm | 230mm
|
| Self locking washers of the self adhesive insulation pins |
| Type | Size | Material | Ceter hole |
| round | 25mm 30mm 32mm 38mm 40mm 50mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| square | 32mmx32mm 29mmx31mm 40mmx40mm 50mmx50mm 60mmx60mm 65mmx65mm | galvanized steel, stainless steel, aluminum | 2mm- 5mm |
| dome cap | 22mm 30mm 32mm 38mm 40mm 50mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
 |
Advantages Of The Self Adhesive Insulation Pins:
1. The pins are riveted on the base of the self adhesive insulation pins, it's very strong.
2. The self adhesive tape on the base botom of the self adhesive insulation pins is very sticky.
3. The self locking washers are very hard, it could lock the self adhesive insulation pins very firmly.

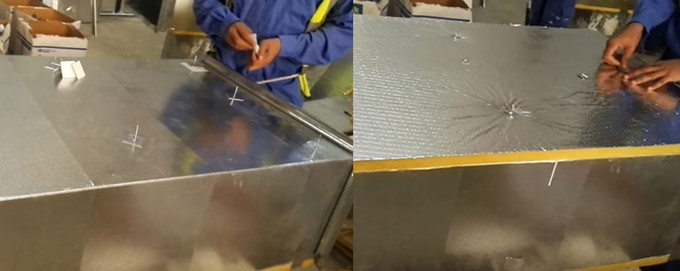

Usage Of The Self Adhesive Insulation Pins:
1. Install at ambient temperatures above 10° C (preferably between 15 and 25° C)
2. Surfaces should be clean and dry, free of dust, grease, oil and any other loose matter
3. Remove the protective release paper,taking care not to touch the adhesive
4. Place the self adhesive insulation pins in the required position and press the base against
the surface to be insulated
5. Insulation can be impaled immediately and firmly locked with fastening clips or washers,
but maximum strength of adherence is achieved after 24 hours
6. If necessary, cover the pin with a protective nylon cap
Huihao Hardware Mesh Product Limited.
| 1. We choose the best quality materials for making insulation fasteners
2. We do copper plating, zinc coated and phosphating pretreatment for the raw material using drawing machine.
3. We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
4. We use the automatic riveting machine to install .
5. After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea.
6. Short delivery time because of our reasonable production flow management. |
  |
